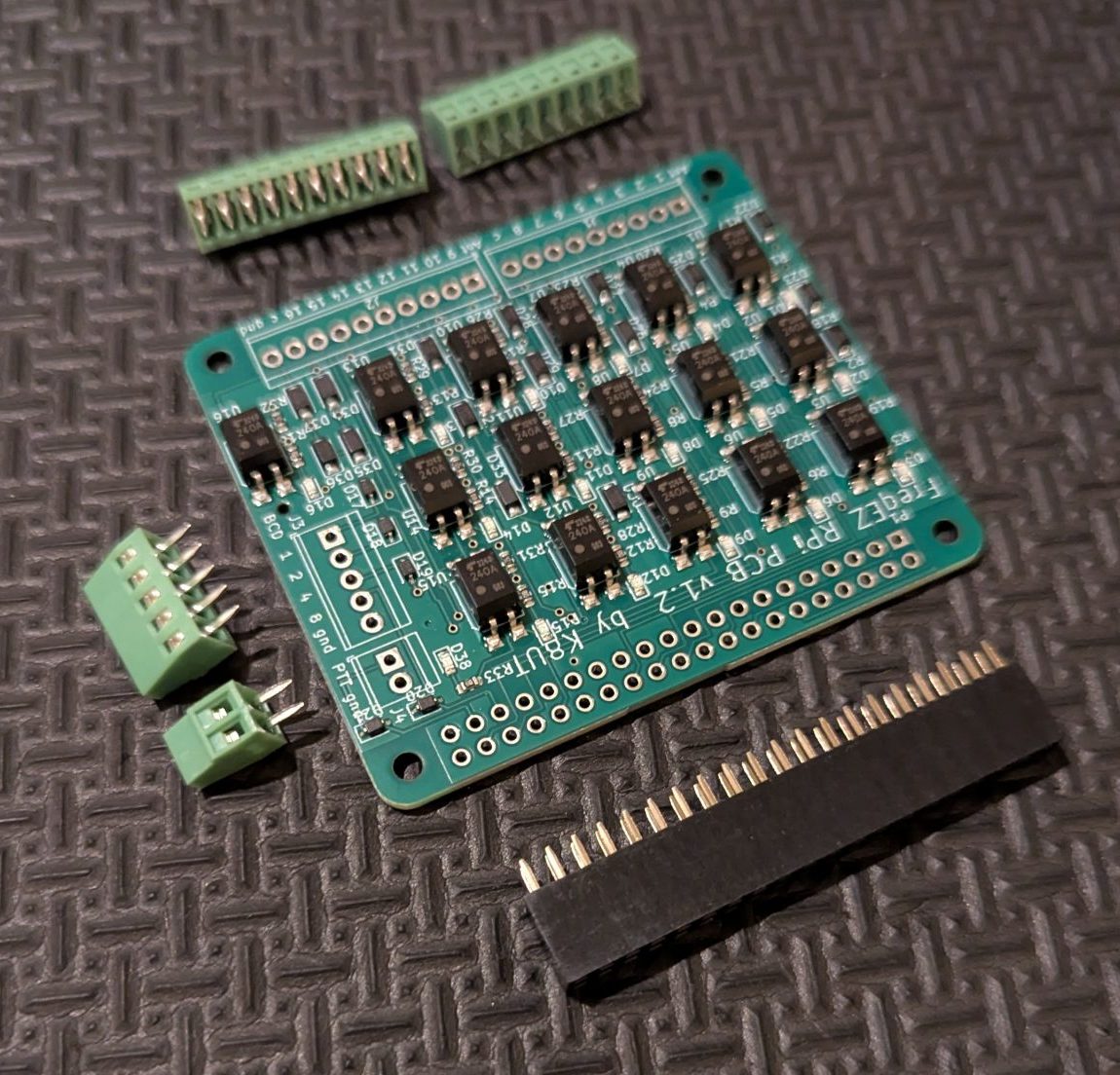

FreqEZ HAT16 Antenna Switch Controller by K8UT

• Automatic antenna selection from network-based UDP packets or hard-wired BCD inputs

  • In N1MM+ – use the antenna numbers from the Configurer Antenna table
  • Supports the N1MM+ Keyboard Shortcut for multiple antennas per band by toggling <alt>+F9
  • In Logger 32, DXLab, Log4OM, UcxLog, TR4Win or N1MM+ – use the Tx radio frequency from the UDP RadioInfo packet
• Manual antenna selection with simple mouse clicks in the Windows FreqEZ Console
• Hard-wired method, for logging programs that do not support UDP broadcasts
• One of these units will drive all the ports of either the 2x6 or 2x8 switch boards

  • An RPi is required for each HAT

• The FreqEZ software is free
• Inexpensive, off-the-shelf, readily available hardware
• No DIP switches, diodes, solder-bridges. All configuration is via software settings
• Single Op Profiles in the Setup window for SO1V, SO2V or SO2R configurations
• Separate antenna configurations for Radio1 versus Radio2 when operating SO2V or SO2R
• The FreqEZ Console and the FreqEZ Controller communicate via WiFi or wired Ethernet connections

  • The Raspberry Pi FreqEZ Controller operates “headless” – can be located anywhere
• Each Raspberry Pi FreqEZ Controller contains 8 (HAT8 card) or 16 (HAT16) outputs

  • The FreqEZ HAT Controller provides bi-directional opto-MOSFET solid-state devices that can each handle 20 volts AC/DC at 500 milliamperes
  • The FreqEZ DIY Controller provides either 8 or 16 “dry contacts” that sink (ground) or source (+12 vdc) in any combination from a variety of available relay boards
